2-Wire Controller
DISCOVER THE
INTELLIGENCE
INSIDE.
Tucor’s NLP Controller blends flexibility, scalability, and powerful features in a controller that can accommodate any commercial site’s needs. From the simplest 50-valve decoder retrofit to a 500-valve system, the NLP can manage complex irrigation requirements with intelligent, water-saving algorithms that balance plant needs with limited water resources. With user-driven features such as on-demand controller backups and enhanced 2-Wire diagnostics, the NLP matches resource-conserving intelligence with features a water manager can practically apply.
Flexibility & Scalability
Manage up to 500 decoders & 125 sensors across 20 points of connection. With up to 50 programs, try advanced program features such as hydraulic-based scheduling, station and station group prioritization, and MAD-based programming or build a simple program in minutes.
Connectivity & Display
Connect & communicate with your controller almost instantly with multiple modes of communication. Make modifications and see them in real time, even during an irrigation event. The NLP’s ruggedized touchscreen display makes quick irrigation adjustments & status changes a breeze.
2-Wire Intelligence
The NLP's enhanced 2-Wire technology matches Tucor’s 25+ year legacy of providing top-quality 2-Wire irrigation controllers. Determine leaks, predict future 2-Wire issues, and record individual decoder leak current, resistance & status to accelerate troubleshooting and prevent future issues on even the largest systems.
Resource Protection
Water more effectively while using less resources with our intelligent irrigation engine. Algorithms that balance plant needs with resource restrictions make the most of limited water supply, pump capacity & run times. Simulate 1 year of irrigation in minutes to stress-test your intended irrigation schedules with potential time & water constraints.
NLP-C-AIR
NLP Controller with built-in cellular modem
NLP-C-E
NLP Controller with built-in ethernet connection
Controller
- Programs: 50, Auto (Automatic order by Hydraulics), Sequential, Prioritized (Manual order allocate 0-255), MAD-Based, Amount, Water Budget & Weather-corrected supported.
- Program Correction: Water Budget & Remote Weather (Davis)
- Program Start Times: Up to 100 Global - Calendar-based
- Start/Stop programs based on sensor values
- Flow Sensors: 20 vis sensor decoder
- Flow Features:
- Flow Alarms: High Flow, Low Flow, High/Low Flow Deviation & Unscheduled Flow alarms
- Support system of up to 100 mains or pipe sections
- Master Valve: Up to 20 N/C & N/O
Decoder & 2-Wire
- Decoder Compatibility:
- RKLD-050
- LD-series
- NG-series (New) 1, 2, 4 & 6 Output Models
- SD-110 Sensor Decoder
- NG-series Simultaneous Station Run: Up to 60
- Total decoder: 500
- Total sensor
- 200 digital input
- 40 analog 4-20mA
- 20 pulse count (rate of flow)
Remote Access
- Communication Options: Standard Cellular, Ethernet
- Subscription: Yearly subscription “NLPNet” required
For comprehensive NLP specifications, download our data sheet.
Controller Models
Standard NLP Assembly
NLP-C-AIR NLP Controller Assembly in 20" SSX Cabinet & 8" touchscreen display. Includes LTE modem.
NLP-C-E NLP Controller Assembly in 20" SSX Cabinet & 8" touchscreen display. Includes ethernet module.
NLP Pedestal Assembly

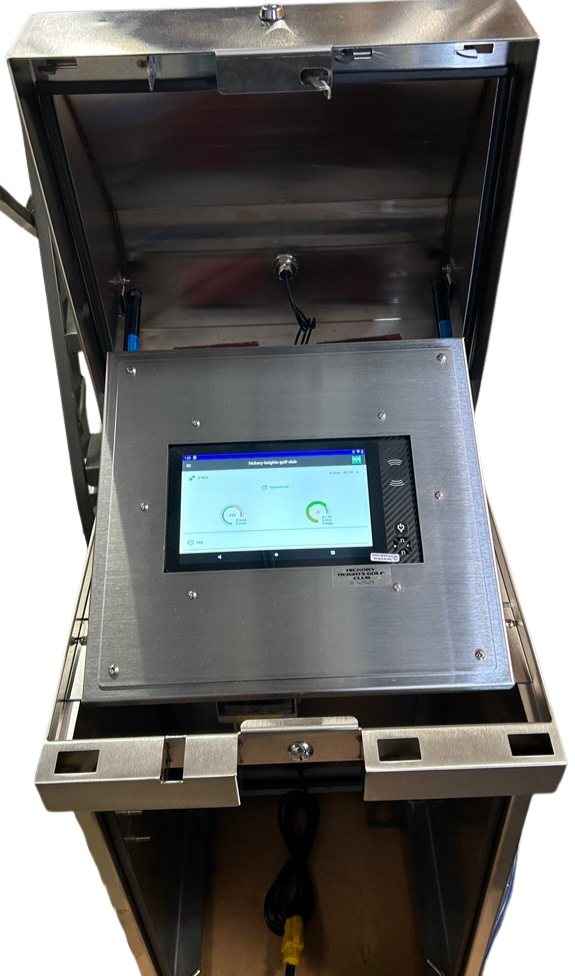

NLP-C-AIR-PED NLP Controller Assembly in SSX pedestal with 8" touchscreen display. Includes LTE modem.
NLP-C-E-PED NLP Controller Assembly in SSX pedestal with 8" touchscreen display. Includes ethernet module.

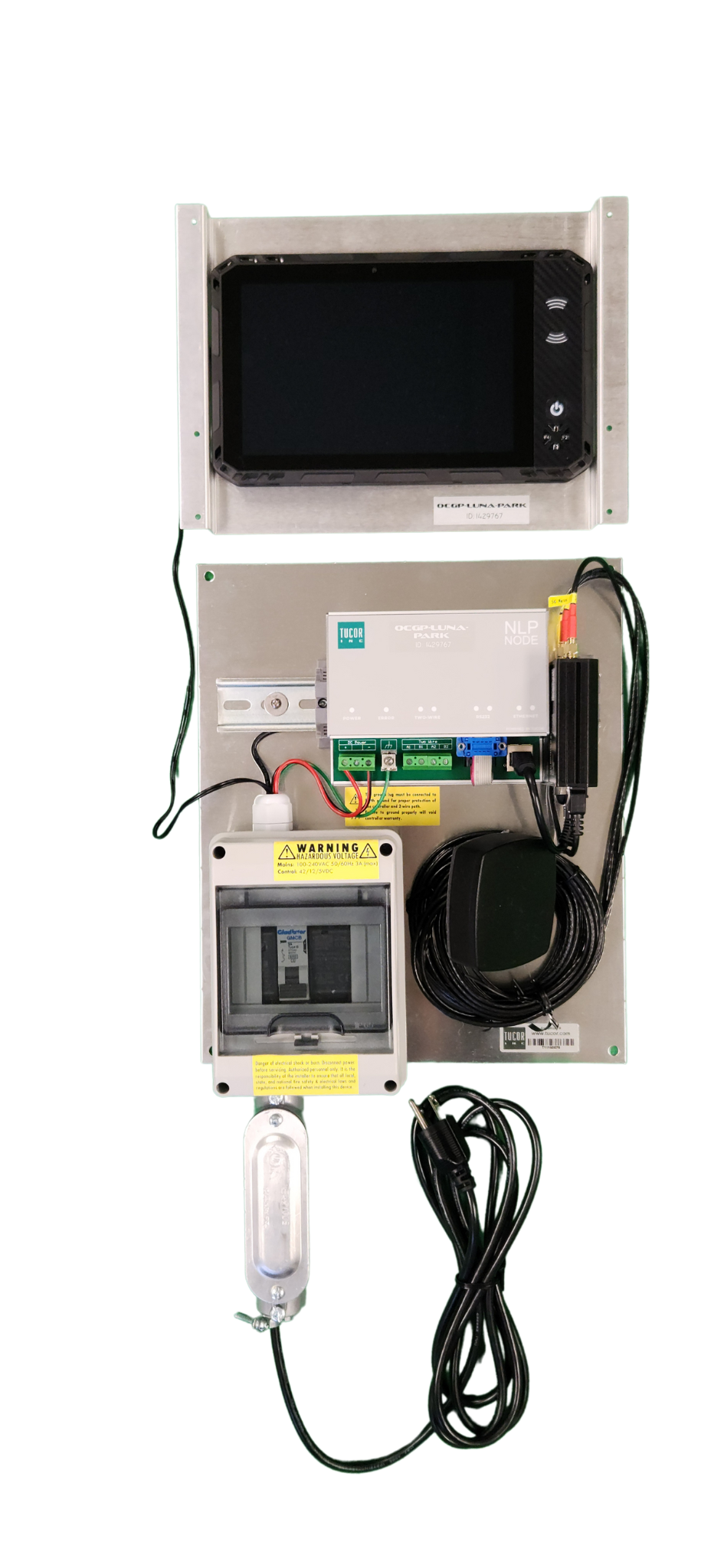

Ask us about our Tucor pedestal retrofit options!
Decoders & Conventional Retrofit

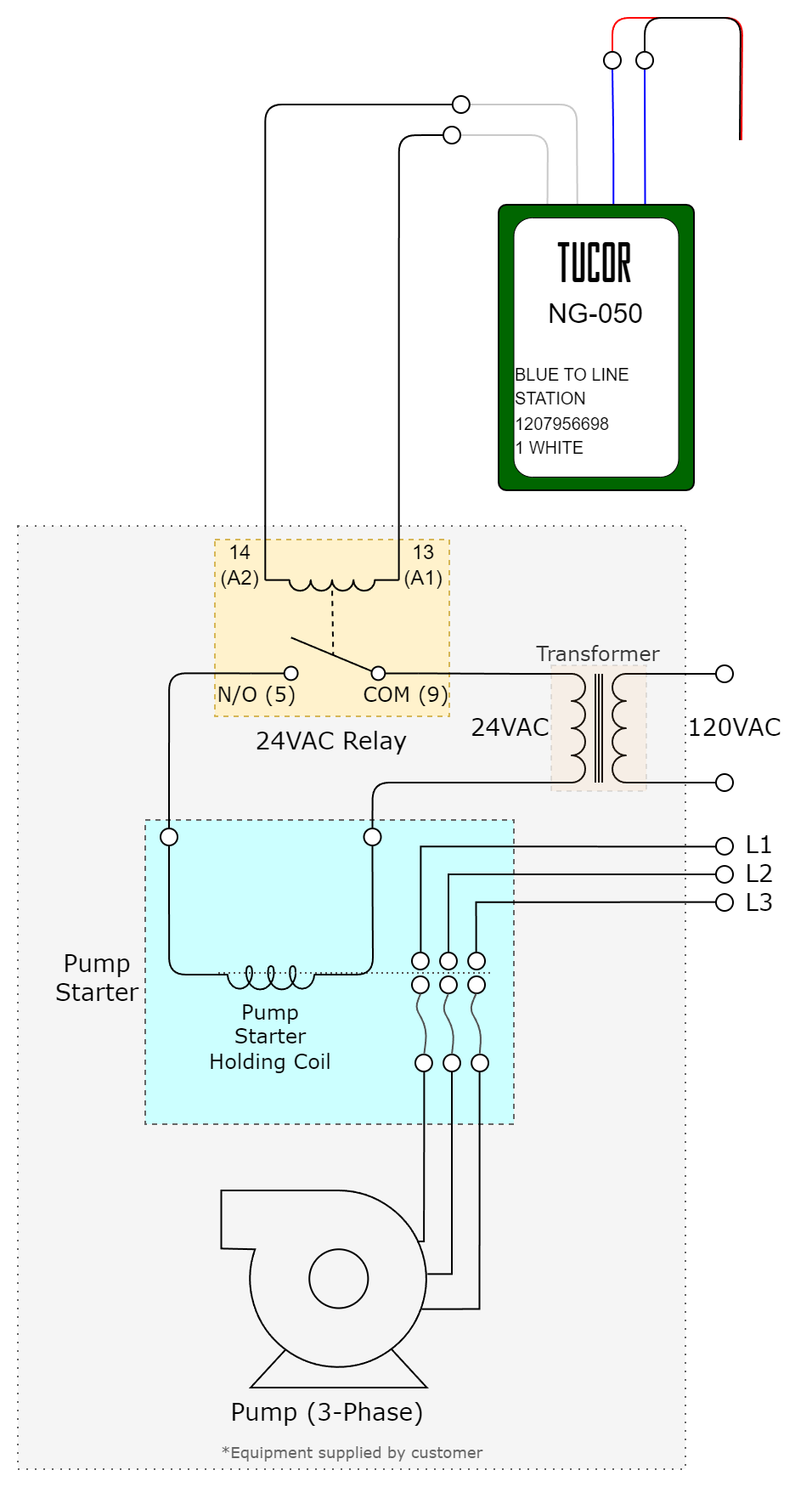

NG-050 Single-output smart decoder.

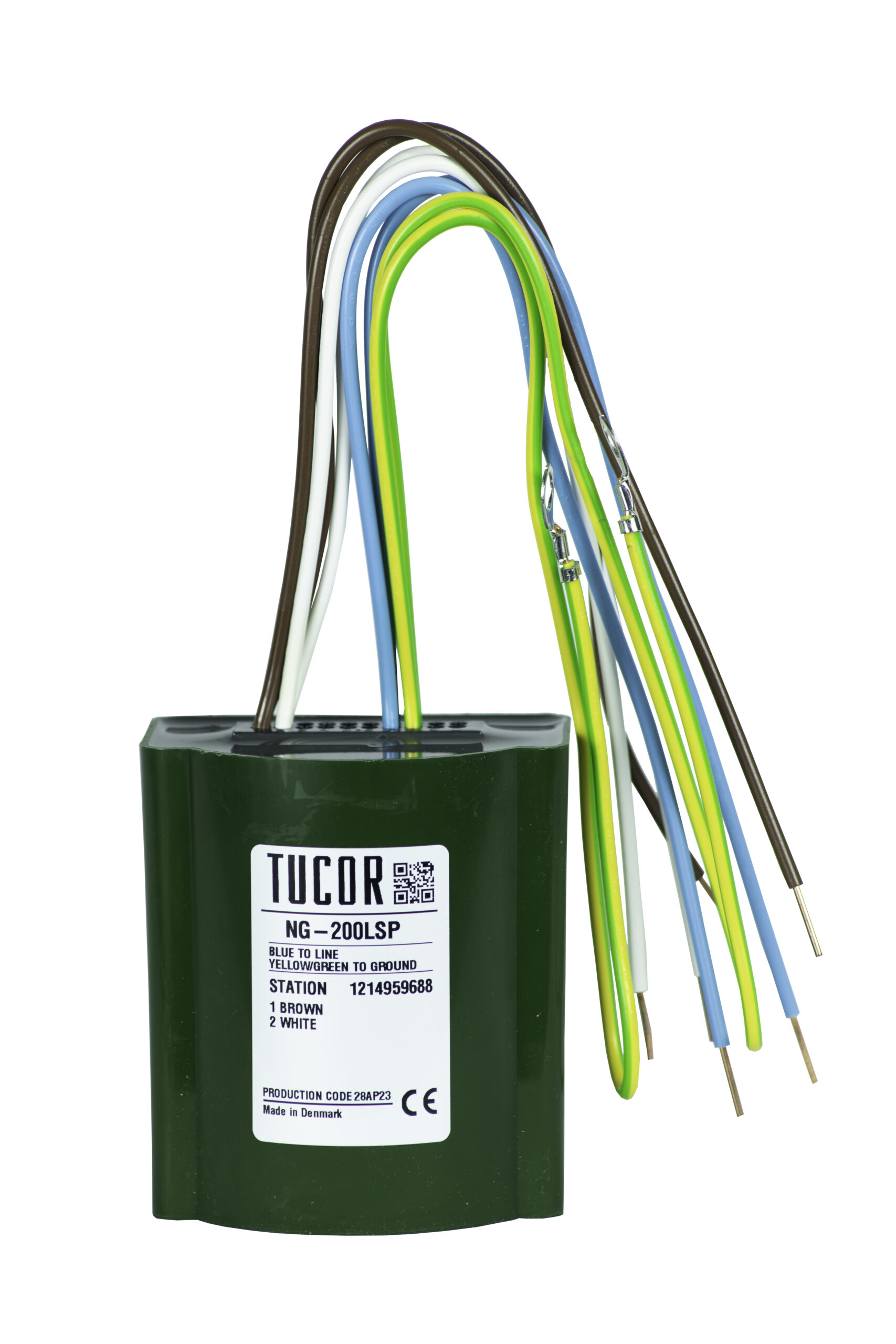

NG-200 Dual-output smart decoder.
NG-400 Four-output smart decoder. Includes build-in surge protection (SP-100).
NG-600 Six-output smart decoder. Includes build-in surge protection (SP-100).
SD-110 Universal sensor decoder for 1 sensor. Accepts pulse, 4-20mA, 0-10VDC sensors.
SP-100 Surge protector. Deploy every 500' and at the end of wire runs.

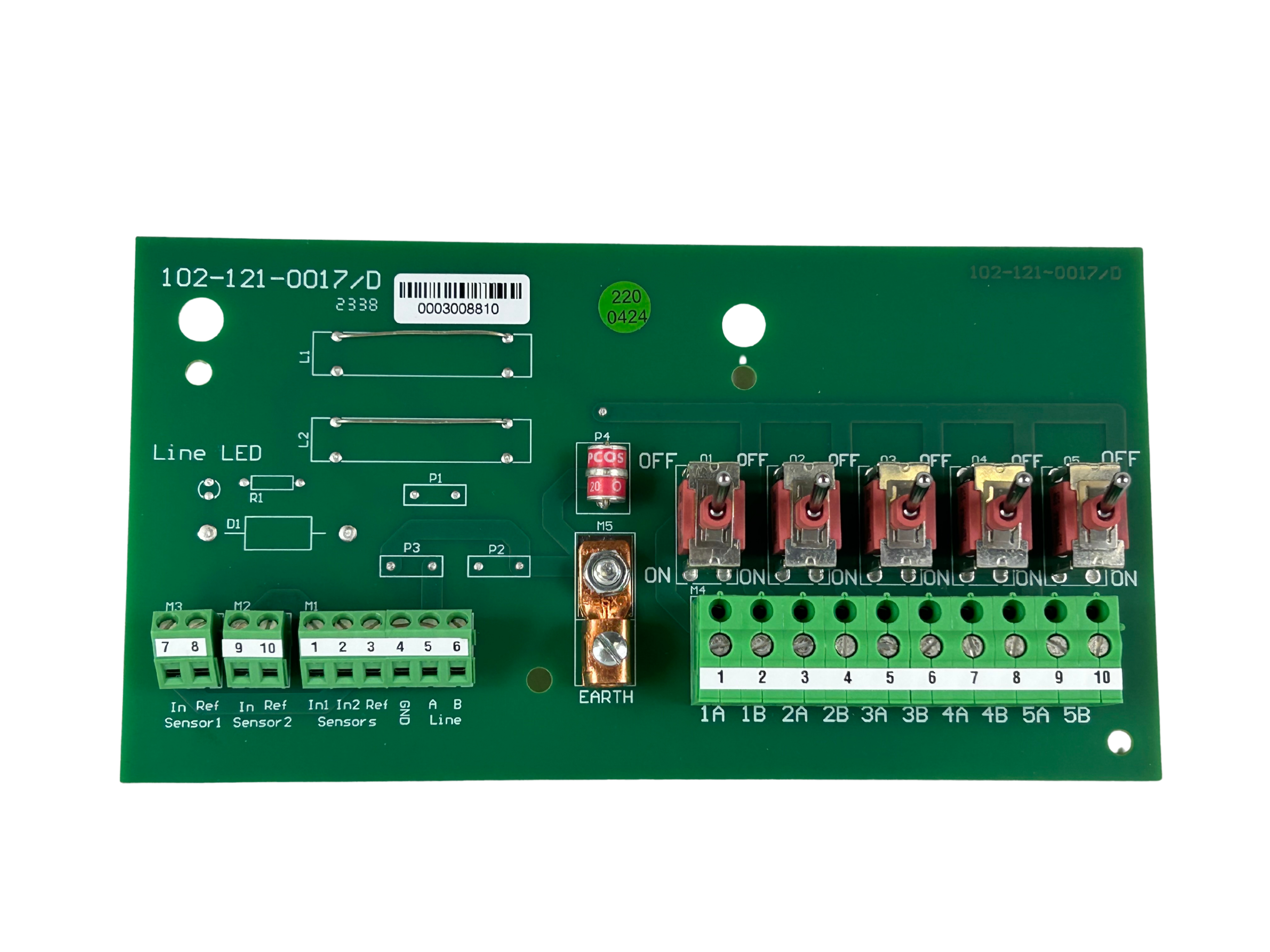

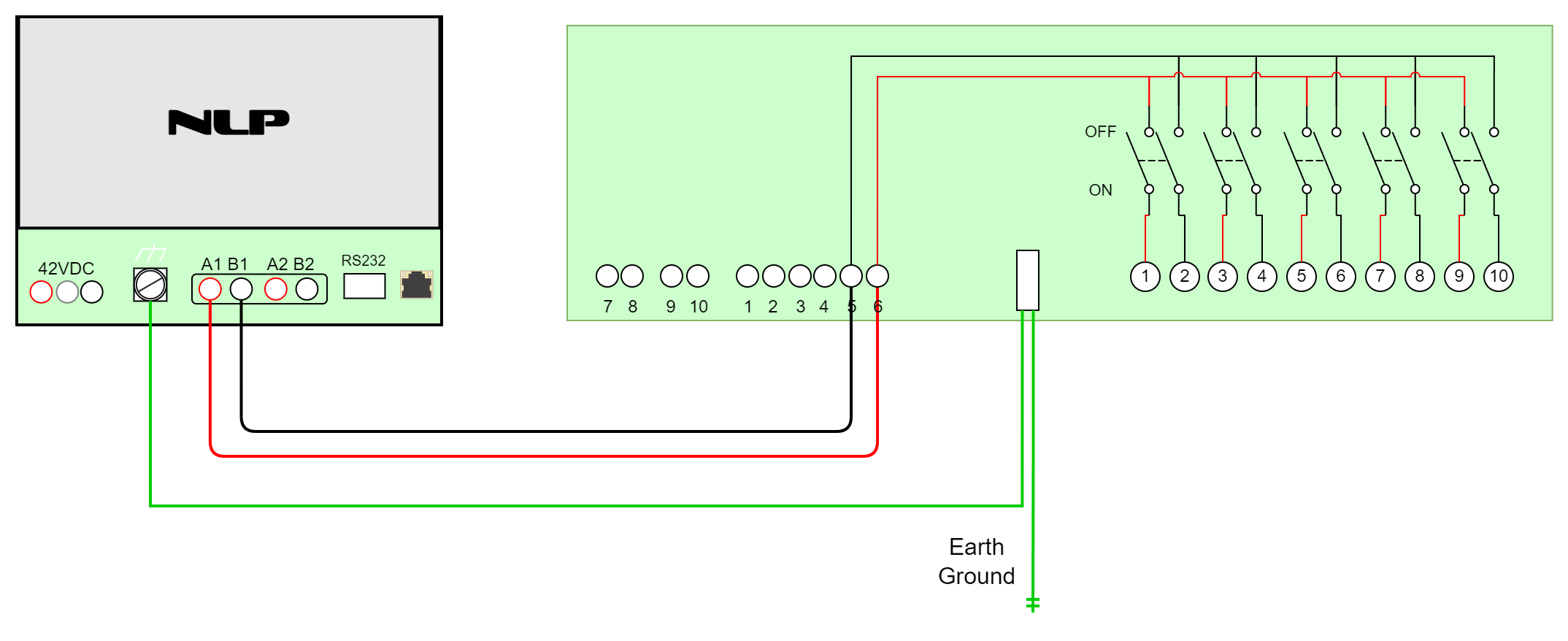

SER-24-B-NLP Station extension relay board for conventional retrofit up to 24 zones. NLP version.

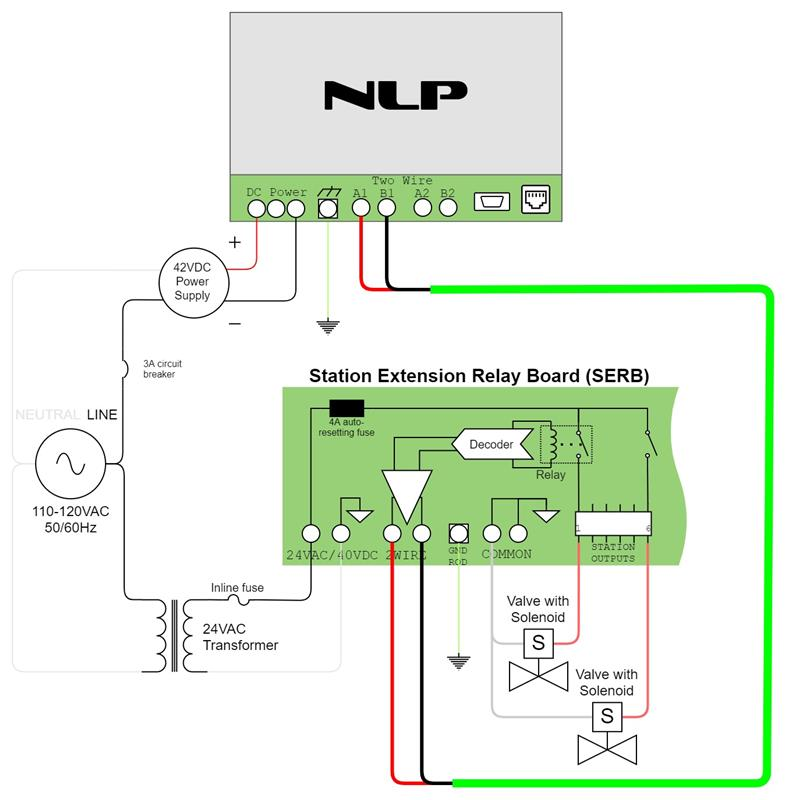

SERB-48-B-NLP Station extension relay board for conventional retrofit up to 48 zones. NLP version.
NLPNet Remote Controller Access
ACT-E-NLP NLPNet one-time activation fee for ethernet connections.
ACT-AIR-NLP NLPNet one-time activation fee for cellular connections.
R-1-E-NLP NLPNet Yearly remote access for ethernet connections.
R-1-AIR-NLP NLPNet Yearly remote access for cellular connections.
Specifier Documents
CAD & Rendered Drawings
